how it's look like a venturi?

3 years 3 months ago - 3 years 3 months ago #29249 by matteo
My surfski has this strange thing, the hole is just a centimeter wide, looks like a black gummy tube covered with pvc. What can I do to restore it ?

inside the cockpit view


outside



Please Log in or Create an account to join the conversation.

3 years 3 months ago #29261 by Ranga
Replied by Ranga on topic how it's look like a venturi?
All I can say WT!!! Such a botch job, WHY?

Please Log in or Create an account to join the conversation.

3 years 3 months ago #29262 by AR_convert
Points for having a crack but wow :ohmy: :blink:

The big blue bit creates vacuum behind it, this in turn will help draw water from the footwell down the small opening. (google "bullet scupper" and look at images to see a flow illustration)

Current - Carbonology"Flash" Vajda "Infusion II K1" Previously ~Finn"Molokai Mk II"~Knysna "Vantage Pro K1' Carbonology "Vault"~Epic"V10L & Sport"~ [/b]Fenn"Mill Double" ~Spirit"PRS"~Finn"Affinity"
Always looking for the next boat :)

Please Log in or Create an account to join the conversation.

3 years 3 months ago #29268 by WingSuit
You can order new Venturis from Huki that will fit any ski. Probably won't look that nice though.

Please Log in or Create an account to join the conversation.

2 years 3 months ago - 2 years 3 months ago #32113 by matteo
hello
My horrible Venturi is leaking , I would like to repair it. The shop here repairs only fiberglass boats, so I need advice on how can be repaired the easy way.

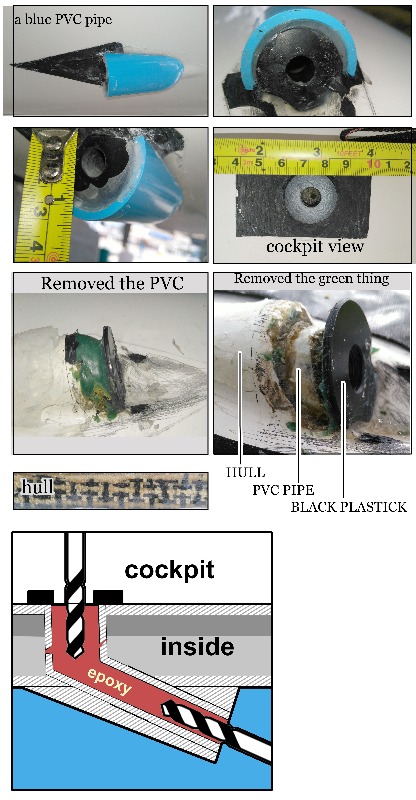

the Venturi was covered by a PVC pipe, I removed it.

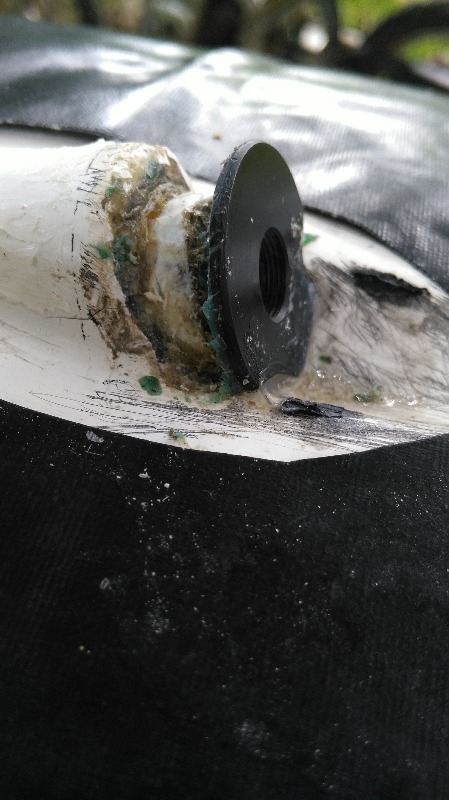

It looks like they inserted a PVC white tube, bonded with resin, I can't remove it, the black plastic thing is inserted in the pvc white tube.



Mi idea is to cut the exceeding part of the white pvc tube, then fill all with epoxy, then drill a 8mm hole in both part.


But I am very happy to have your advice.
Thank you all

Attachments:

Please Log in or Create an account to join the conversation.

2 years 3 months ago #32119 by Ranga
Replied by Ranga on topic how it's look like a venturi?
What ski is it?
Looks similar to an Epic but Epic do not use Kevlar Carbon weave on the hull. Epic ventury is also straight, has no turns in the tube, the tube is an injection molded tube.
My suggestion is to remove everything that has been done and start again.

Please Log in or Create an account to join the conversation.

2 years 3 months ago #32120 by matteo
Hi Ranga
It's a copy of a V10Sport (old version) made in Hungary.

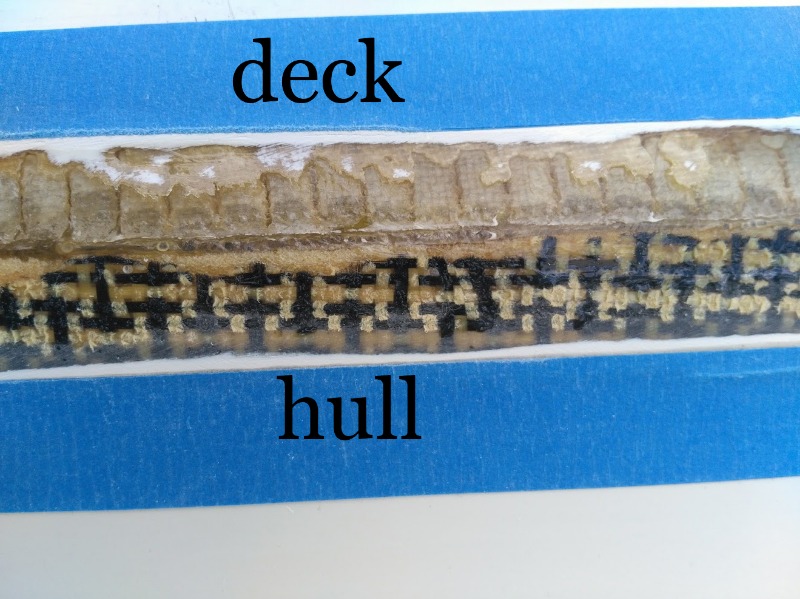

Is it kevlar carbon the hull material?
Attachments:

Please Log in or Create an account to join the conversation.

2 years 3 months ago - 2 years 3 months ago #32121 by matteo
.
Attachments:

Please Log in or Create an account to join the conversation.

2 years 3 months ago #32130 by Ranga
Replied by Ranga on topic how it's look like a venturi?
Sorry mate, cannot help you on this one. Get hold of the manufacturer and ask them.
However any composite repairer should be able to repair this sort of thing. Fiberglass is no different to work with than any other material such as carbon or Kevlar, that being said if your guy seems to think he only works with fiberglass maybe he is not the person to let loose on anything you own, especially a ski!
