Sacrilege: Mounting a hatch in a Epic V10 sport

1 month 1 hour ago #38523 by josm
Hi, what's inside a 2006  Epic v10 sport gen 1?

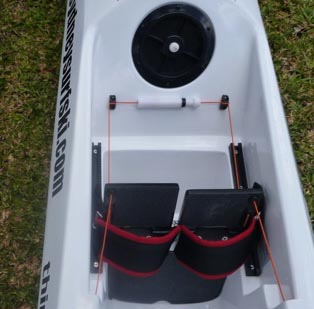

 I want to use it for touring so I had this idea of carving a hatch. It's just an idea at the moment. It's a carbon-kevlar hull, fiberglass deck. It can be a small hatch if front of the footboard:

and that's easy
Or a bigger one behind che cockpit, but I don't know what is inside, and what kind of hatch I can install.
Attachments:

Please Log in or Create an account to join the conversation.

4 weeks 2 days ago #38524 by MCImes

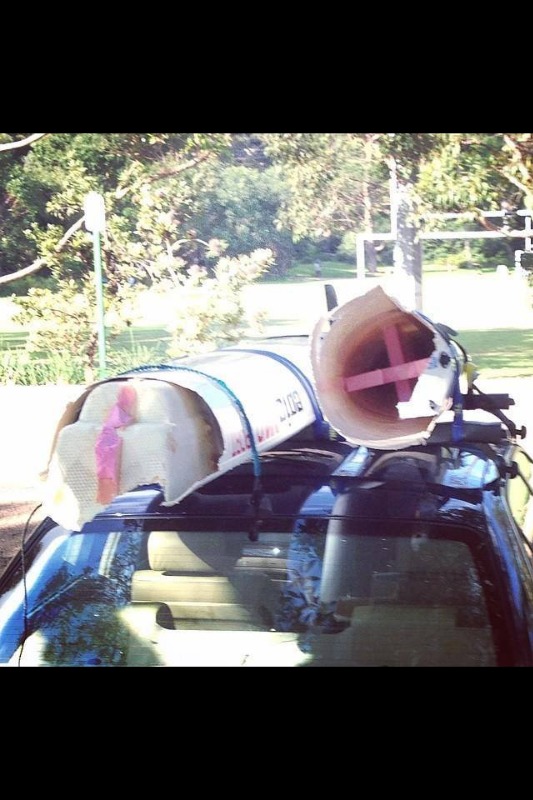

Awesome pics. Hopefully you bought the boat in 2 pieces!

I think it was Cryder or FasterFarther that had a video on here of him in a V12 converted with a hatch. He kayak camped along some reservoir in oregon if memory serves correct. He had some great shows of downwinding in 3' lake swell.

So not sacrilege at all! a pretty good idea if you can pull it off. The V10S would be a great platform for long distance fast touring. Still stable enough to spend many hours a day on, but fast enough to cover a lot of miles and very seaworthy.

How are you going to align the 2 pieces so that they're straight and correctly rockered?

Currently - Swordfish S in Southern California's ocean waters
Past Boats: Epic V10 g0, Stellar SR g1, Fenn XT g1
"When you've done something right, they wont know you've done anything at all"

Please Log in or Create an account to join the conversation.

4 weeks 2 days ago #38526 by waverider

MCImes wrote:  Cryder or FasterFarther

One and the same person. First fixed up a broken ski like this then had one custom made by epic


Should find some links by searching here on google. maybe sent a PM to Cryder
The following user(s) said Thank You: josm

Please Log in or Create an account to join the conversation.

4 weeks 2 days ago #38527 by josm

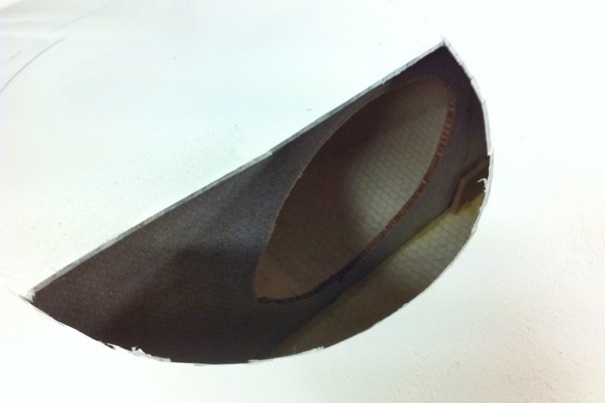

Hi MCImes, fortunately it's not my kayak, it's just an image I found to show how  probably an old Epic it's inside
The following user(s) said Thank You: PromptAttestation

Please Log in or Create an account to join the conversation.

4 weeks 21 hours ago #38528 by SpaceSputnik
OP, talk to Selkie, at one point he was involved in a hatched ski design.

Please Log in or Create an account to join the conversation.

4 weeks 16 hours ago #38530 by BustedRudder
I repair skis so have been inside a lot of them.
The picture is accurate, though depending on the make/build it could be a foam stringer aft.
I like the 4" hatch in the front of the bucket, they are great to dry the boat out and store keys / emergency stuff, but there is usually a foam stringer vertical just inside which will block access a bit.
A hatch aft is VERY problematic if it is large and violates the stringer. Skis are monocoque construction. The skin is part of the strength and the stringer is crucial. The V10 pictured was custom built by  Epic and took into account the lack of a stringer with additional carbon to stiffen the boat.
You can do it, but if you go surfing in the boat and it is stressed it might fold in half at the new hatch:(
A smaller hatch left or right of the stringer is a reasonable alternative but you wont get a tent through it.
An overhead laser level would be a good aid in getting the two halves aligned. Good luck!


Please Log in or Create an account to join the conversation.
